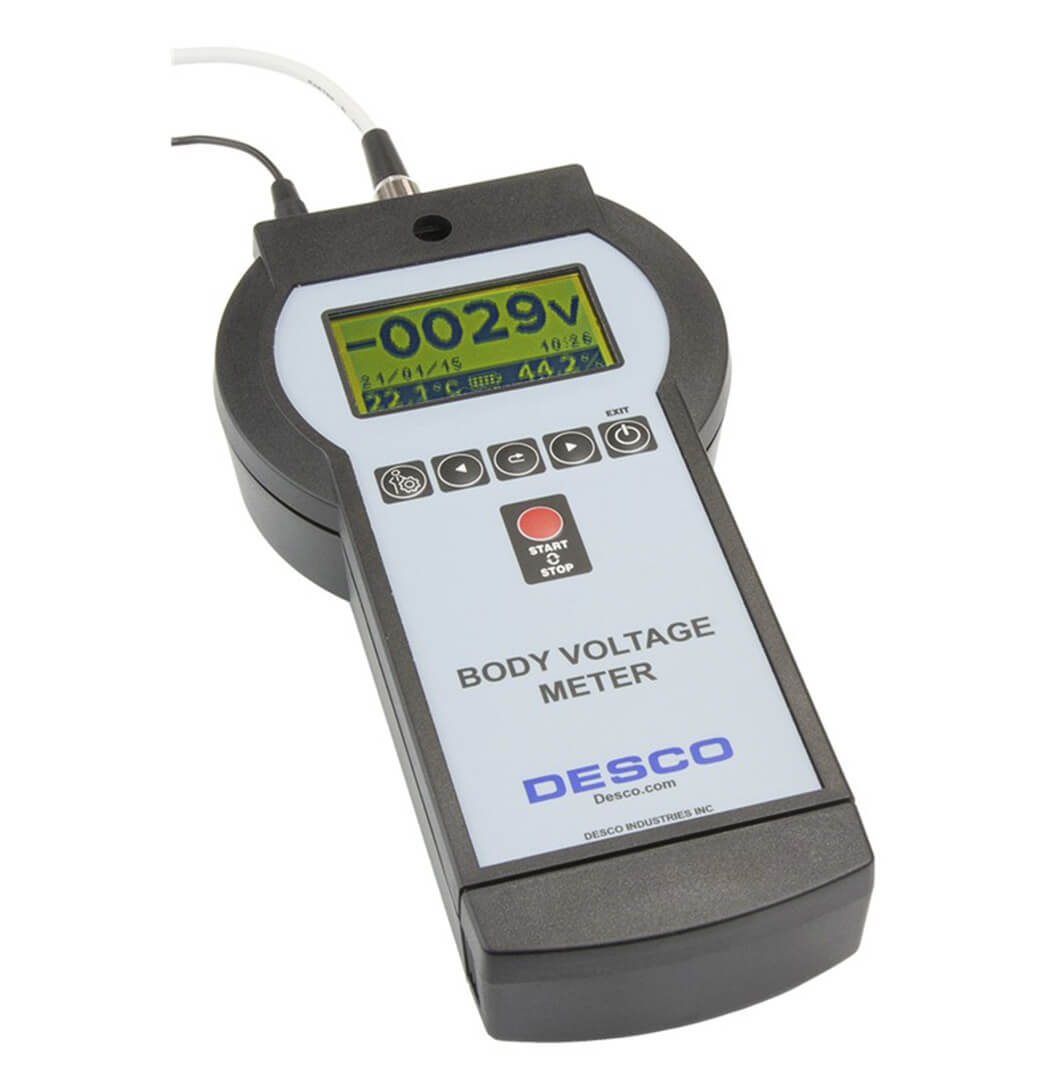

19431- Body Voltage Meter

Contact Us

The Desco 19431 Body Voltage Meter is a portable measuring system that allows analysis of charge levels accumulated on the human body according to IEC 61340-4-5. I

  • Body voltage verification meter
    Measures voltage (Human Body Voltage – HBV) on a person in combination with ESD footwear and flooring materials (both pre and post installation) according to IEC 61340-4-5 and ANSI/ESD STM97.2
  • Nominal and graphed measurements
    Records graphs up to 2.5 minutes in total duration
  • Peak hold and continuous measurement modes (±1 V to ±1050 V range)
    Displays the peak or live static voltage measured on the operator’s body
  • Internal memory
    Logs up to 10 graphs
  • WT Manager software included
    Downloads recorded tests onto a PC and exports to Microsoft Excel
  • Made in Italy

Voltage Range: ±1050 V

Accuracy: ±5 V

Resolution: 1 V

Input Resistance: 1014 ohms

Power Supply: 6 AA alkaline batteries

Battery Auto-Shut Off: 10 minutes

Display: Graphic LCD 128 x 64 pixel, 68 mm x 51 mm

Memory Capacity: 10 graphs

Sample rate: 200 Hz

Max Total Graphs Duration: 2 minutes and 30 seconds

PC Interface: USB

Operating Temperature: 41°F to 85°F (5°C to 30°C)

Environmental Requirements: Indoor use only at altitudes less than 6500 ft. (2km)

Maximum relative humidity of 80% up to 85°F (30 °C)

Dimensions (meter): 9.6″ x 5.1″ x 2.4″ (243 mm x 130 mm x 60 mm)

Dimensions (probe): Ø 1.4″ x 5.1″ (Ø 35 mm x 130 mm)

Weight (meter with batteries): 1.4 lbs (650 g)

Weight (probe): 0.6lbs (250 kg)

Country of Origin: Italy

  • TB-3081.E – Body Voltage Meter – Installation, Operation and Maintenance
