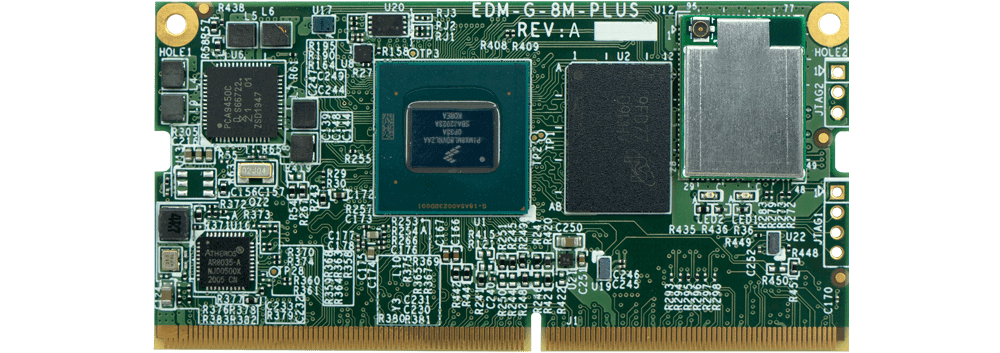

EDM-G-IMX8M-PLUS

Contact Us
EDM Type G is a System on Module standard form factors. It provides a modern and capable interface set and focuses on ease-of-use, robustness and being future-proof. EDM Type G Modules utilize a 260 pin LPDDR4 SO-DIMM edge connector which brings a wide variety of interfaces at a cost-effective, highly reliable, shock- and vibration-resistant connection.
  • NXP i.MX 8M Plus applications processor
  • Up to four Cortex-A53 1.8 GHz processors
  • Cortex-M7 processor with speeds up to 800 MHz
  • Neural Processing Unit (NPU)
  • Image Signal Processor (ISP)
  • Armv8 64-Bit CPU cores

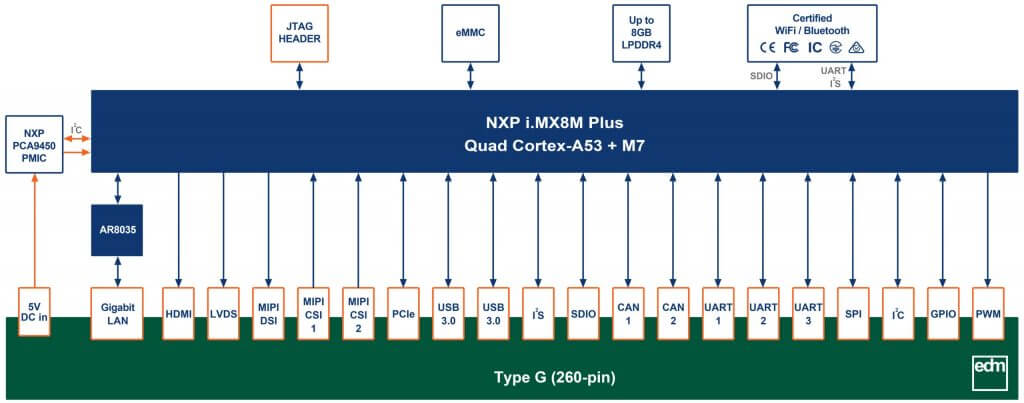

Core System
Processor: NXP i.MX8M Plus

Architecture: ARM Cortex-A53 + M7

AI / ML: NN Accel 2.3 TOPS

PMIC: NXP PCA9450

Memory: Upto 8GB LPDDR4

Storage: 32GB eMMC (default)

Board-to-Board Connector: 260-pin DDR4 SO-DIMM

System on Module: EDM SOM

Debug Interface: JTAG Interface by Through-hole

Connectivity
Network LAN: 1x Atheros AR8035 Gigabit LAN

Wi-Fi: Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac (optional)

Bluetooth: Qualcomm Atheros QCA9377 Bluetooth (optional)

Antenna: MHF4 connector (optional)

Signaling
I/O: HDMI, LVDS, LAN, MIPI CSI, MIPI DSI, PCIe, USB, I²S, SDIO, CAN, UART, SPI, I²C, PWM, GPIO

Video
GPU Engine: GC520L (2D), Vivante GC7000UL

Video decode: 1080p60 (h.265, h.264, VP9, VP8)

Video encode: 1080p60 (h.265, h.264)

Camera: Dual MIPI CSI (4 lanes)

Audio
Audio Codec: On carrier board

Audio Interface: I²S (2 channel)

Power Specifications
Power Input: 5V DC +/-5%

Power Consumption: Depending on Configuration

Operating Systems
Standard Support: Linux,Yocto, Android, Ubuntu

Extended Support: Boot2Qt, Commercial Linux, FreeRTOS, Real Time OS

Environmental and Mechanical

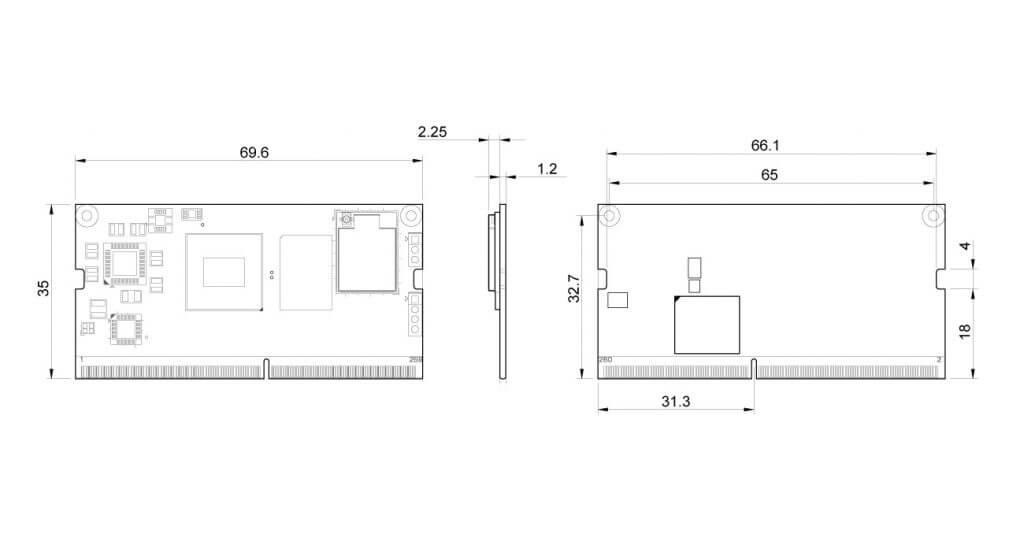

Dimensions: 69.6 x 35mm

Form Factor: EDM Type G

Relative Humidity: 10% to 90%

MTBF: 100,000+ Hours

Shock: 15G half-sine 11 ms duration

Operation Temperature : Commercial: 0° to +60° C, Industrial: -40° to +85° C

Vibration: 1 Grms random 5-500Hz hr/axis

Weight: 8 grams

Certification and Compliance
FCC: FCC ID: 2AKZA-QCA9377

IC: IC: 22364-QCA9377

CE: EN 300 328 v2.2.2, EN 301 893 v2.1.1, EN 55032 / EN 55024

Certification: Compliant with RoHS / REACH directives

Bluetooth Logo: QDID 150839 (Bluetooth 4.2)

REACH / RoHS: YES
