GBLCSC08CLC-TS-Ultra Low Capacitance TVS Array

Contact Us

Manufacturer: Protek Devices

Manufacturer Part No.: GBLCSC08CLC-TS

IHL Part No.: GBLCSC08CLC-LF-TS

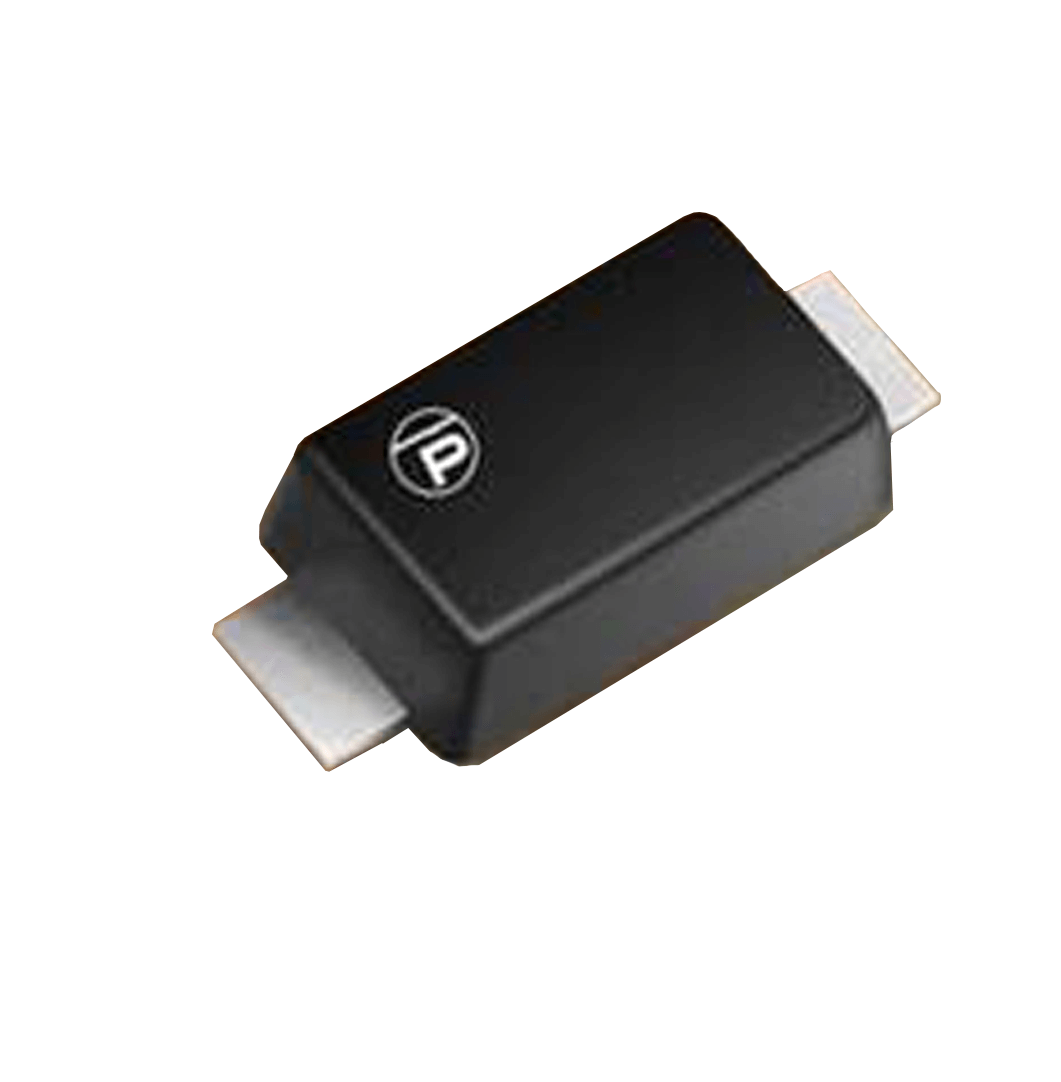

  • Package: Molded JEDEC SC-79
  • ESD Rating per IEC 61000-4-2 (Air): 15.0kV
  • ESD Rating per IEC 61000-4-2 (Contact): 8.0kV
  • ESD Protection: —
  • Standoff Voltage, Vwm: 8.0V
  • Breakdown Voltage, VBR: 8.5V
  • Clamping Voltage, Vc: 13.0V
  • Peak Pul Current, IPP: 7A
  • Leakage Current @ Vwm: 1.0µA
  • Capacitance: 0.4pF
  • Peak Pulse Power per Line: 125.0W
  • Operating Temp: -55 to 150°C
  • Storage Temp: -55 to 150°C
  • Approximate Weight: 2mg

Data Sheet
