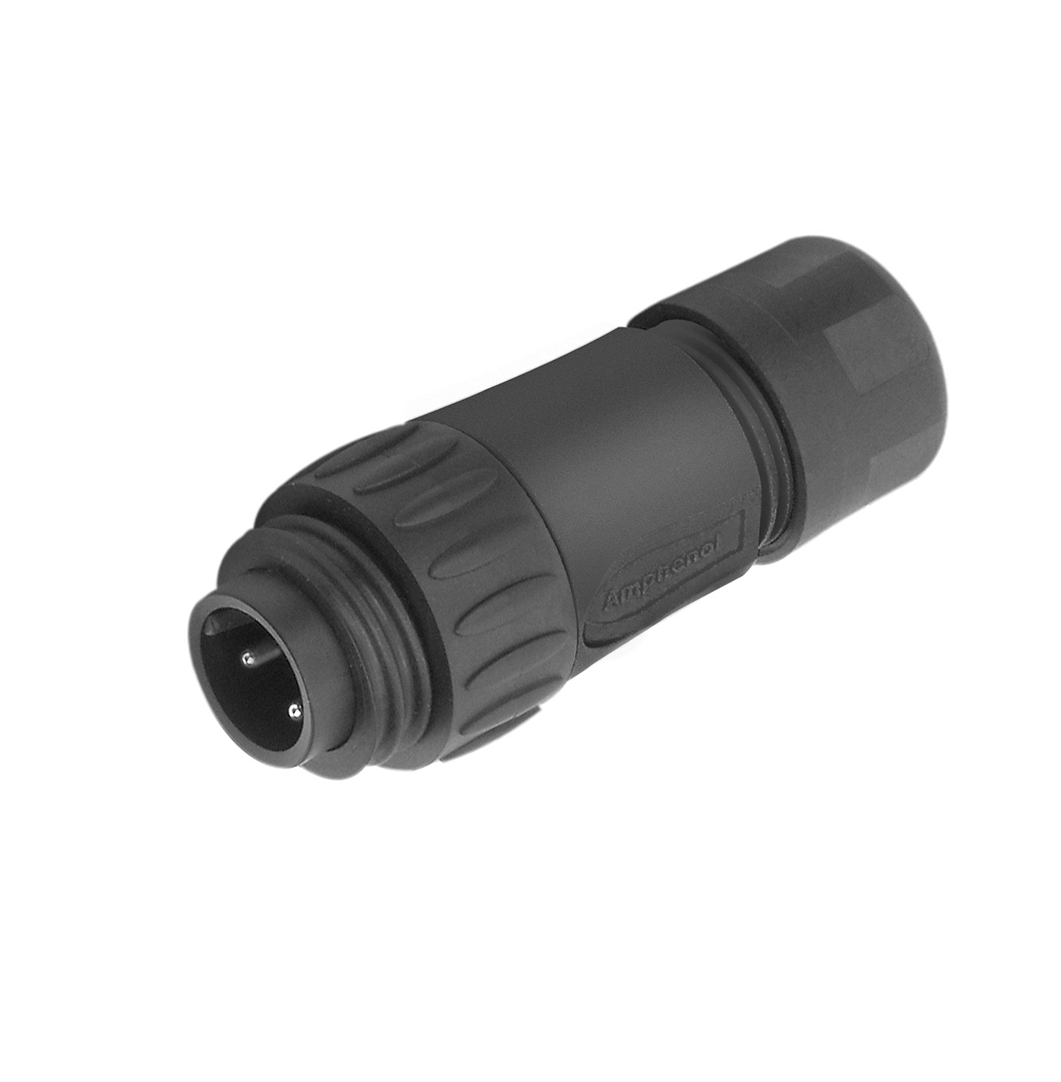

C01630H00610012-Amphenol Male Connector, C16-M Eco-mate Series, 6+PE

Contact Us

Description:

  • 6 +PE Male, straight cable connector with strain relief and clamping ring
  • Black backshell
  • Comparable to 99-0213-015-07, CA6LS

Manufacturer: Amphenol

Manufacturer Part No.: C01630H00610012

IHL Part No.: C01630H00610012

  • Number of Contacts: 6+ PE
  • Type: Solder
  • Backshell Colour: Black
  • Rated Voltage: 250 V
  • Rated Impulse Withstand Voltage: 4000 V
  • Current Carrying Capacity: 12A
  • Insulation Resistance: ≥ 10(8) Ω
  • Contact Resistance: ≤ 5 mΩ
  • Climatic Category: 40 / 125 / 56
  • Operating Temperature: -40°C to +125°C
  • Degree of Protection: IP67
  • Insertion and Withdrawal Force: < 30 N
  • Mechanical Operation: > 500 Mating Cycles
  • Housing Material: PA 6.6 / PA 6
  • Dielectric Material: PA 6.6 / PA 6
  • Gasket Material: Neopren
  • Material Lace for Protective Cap: TPE
  • Contact Plating: Silver Plated
  • Termination Technique: Solder
  • Wire Gauge / AWG: Max. 0.75 mm² / AWG 18
  • Flammability: V0
  • Locking System: Round Thread
  • Cable Diameter: 6-12.5mm
