C01620K00310012-Amphenol Male Connector, C16-M Ecomate Series, 3+PE

Contact Us

Description:

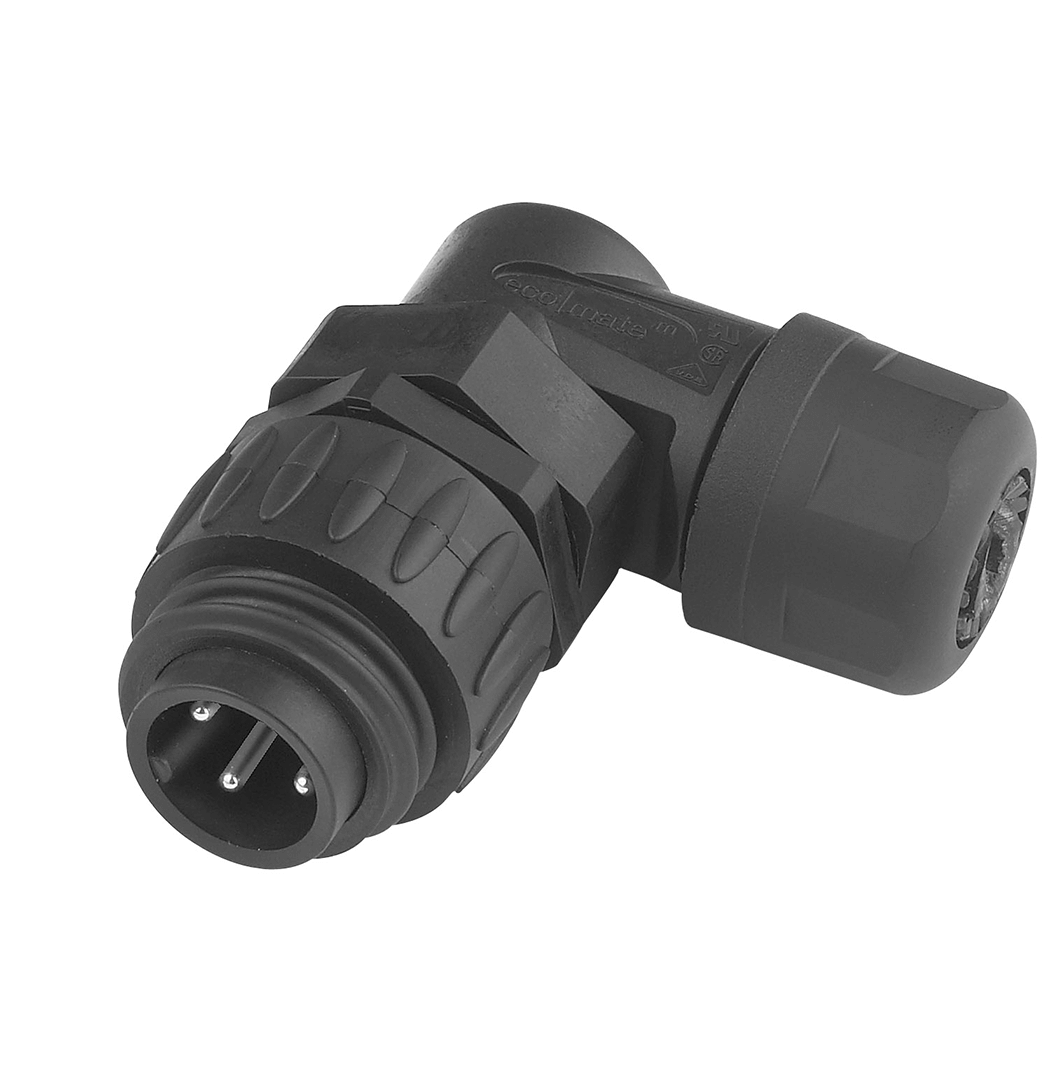

  • 3+ PE Male, right angled cable connector with strain relief and clamping ring
  • Black backshell
  • Comparable to 99-4221-70-04, CA3WLS

Manufacturer: Amphenol

Manufacturer Part No.:C01620K00310012

IHL Part No.: C01620K00310012

  • Number of Contacts: 3 + PE
  • Type: Field installable screw termination
  • Backshell Colour: Black
  • Rated Voltage: 400 V
  • Rated Impulse Withstand Voltage: 6000 V
  • Current Carrying Capacity: 16 A / + 55 °C
  • Insulation Resistance: ≥ 10(8) Ω
  • Contact Resistance: ≤ 5 mΩ
  • Climatic Category: 40 / 100 / 56
  • Operating Temperature: -40°C to +100°C
  • Degree of Protection: IP67
  • Insertion and Withdrawal Force: < 15 N
  • Mechanical Operation: > 500 Mating Cycles
  • Housing Material: PA 6.6 / PA 6
  • Dielectric Material: PA 6.6 / PA 6
  • Gasket Material: Neopren
  • Material Lace for Protective Cap: TPE
  • Contact Plating: Silver
  • Termination Technique: Screw
  • Wire Gauge / AWG: 0.75 – 2.5 mm² / AWG 18-14
  • Flammability: V0
  • Locking System: Round Thread
  • Cable Diameter: 6-12.5mm
  • Voltage Rating: 400V
