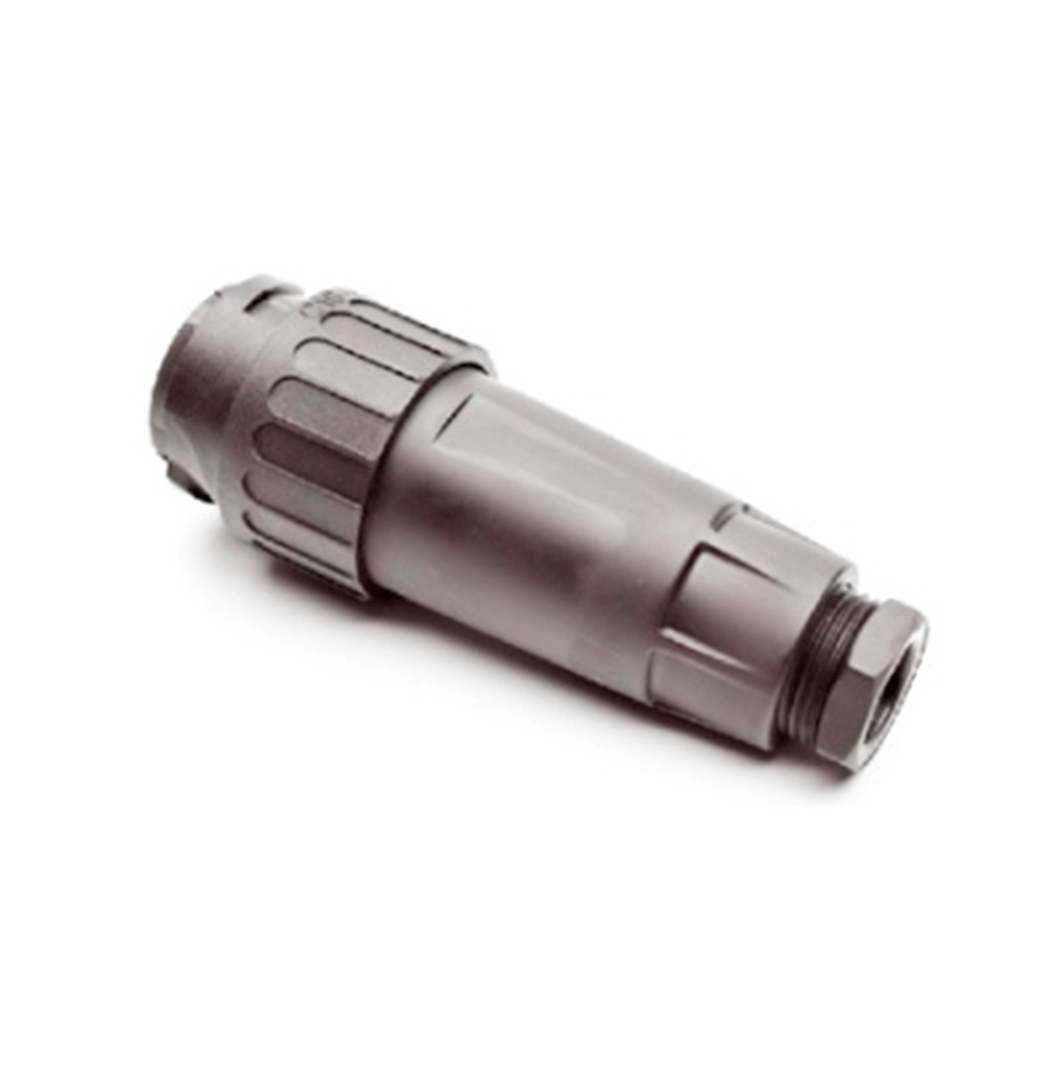

C01610I0120032-Amphenol Male Connector, C16-3 Series, 12+PE

Contact Us

Description:

  • 12+PE Male, straight cable connector with strain relief and cable retention

Manufacturer: Amphenol

Manufacturer Part No.: C01610I0120032

IHL Part No.: C01610I0120032

  • Shell Size: 2
  • Insulation Resistance: 10(8)
  • Contact Resistance: 5 m
  • Contacts: 12+PE
  • Version: Straight
  • Cable Diameter: 12-14mm
  • Rated Voltage: 3 x 500 V, 9 x 300 V
  • Rated Impulse Voltage: 3 x 6000 V, 9 x 4000 V
  • Current Carrying Capacity: 3 x 21A, 9 x 11A
  • Operating Temperature: -40°C to +125°C
  • Protection: IP65
  • Insertion/Withdrawl Force: 25 N
  • Lifetime: 500 mating cycles
  • Strain Relief: Cable retention
  • Contact Plating: Silver/Gold
  • Housing: Polyamid 6.6
  • Gasket: Neoprene
  • Dielectric Material: Polyamid 6.6
  • Termination: Crimp
  • Wire Gauge: 0.09 – 2.5mm² (28-14 AWG)
  • Locking: Bayonet
  • Style: I
  • Rated Voltage per UL 1977: 400V/250V
