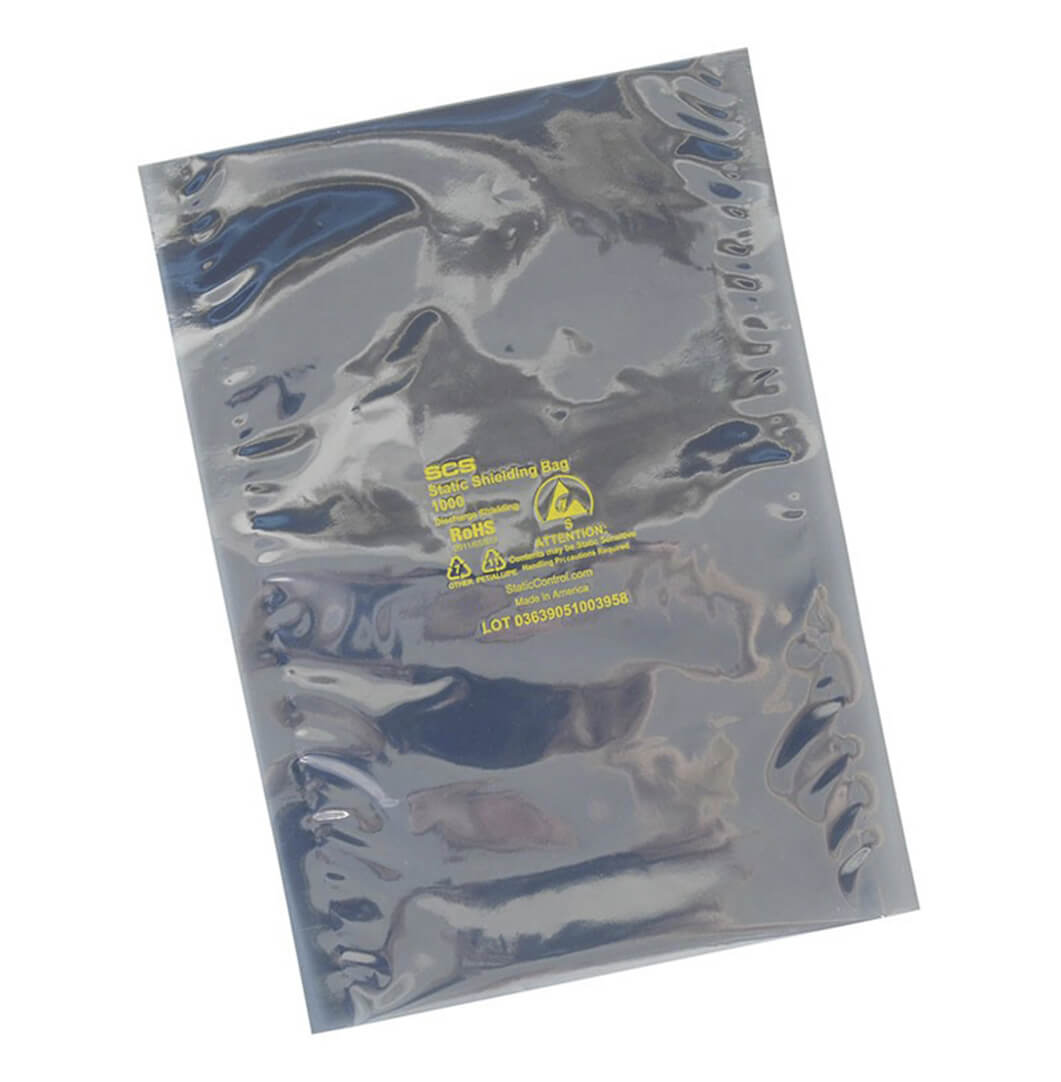

10058-1000 Series Metal-In Static Shield Bag, 125mm x 200mm, 100 EA

Contact Us

Manufacturer: Desco

Manufacturer Part No.: 10058

IHL Part No.: 10058

  • Metal-In Film Laminate 0.0028” thick (2.8 mil)
    Protects ESD sensitive contents from electrostatic fields and electrostatic discharges (ESD)
  • <10 nJ Discharge Shielding Energy Limit Test per ANSI/ESD STM11.31
    Meets ANSI/ESD S20.20 and ANSI/ESD S541 requirements for ESD shielding packaging inside and outside an ESD Protected Area (EPA)
  • Dissipative Inner and Outer Surfaces Rs 1 x 104 to <1 x 1011 ohms per ANSI/ESD STM11.11 and Static Control Bag ANSI/ESD S11.4 Level 3
    Allows bag to be used throughout an ESD Protected Area and grounded when placed on a grounded surface or handled by a grounded operator
  • Printed with ESD Protective Symbol and Lot Code Information
    Meets the requirements of ANSI/ESD S541 for quality control purposes
  • OpenTop and ZipTop styles are available
  • Lead-free RoHS 2, REACH and Conflict Minerals Compliant
  • Made in the United States of America
