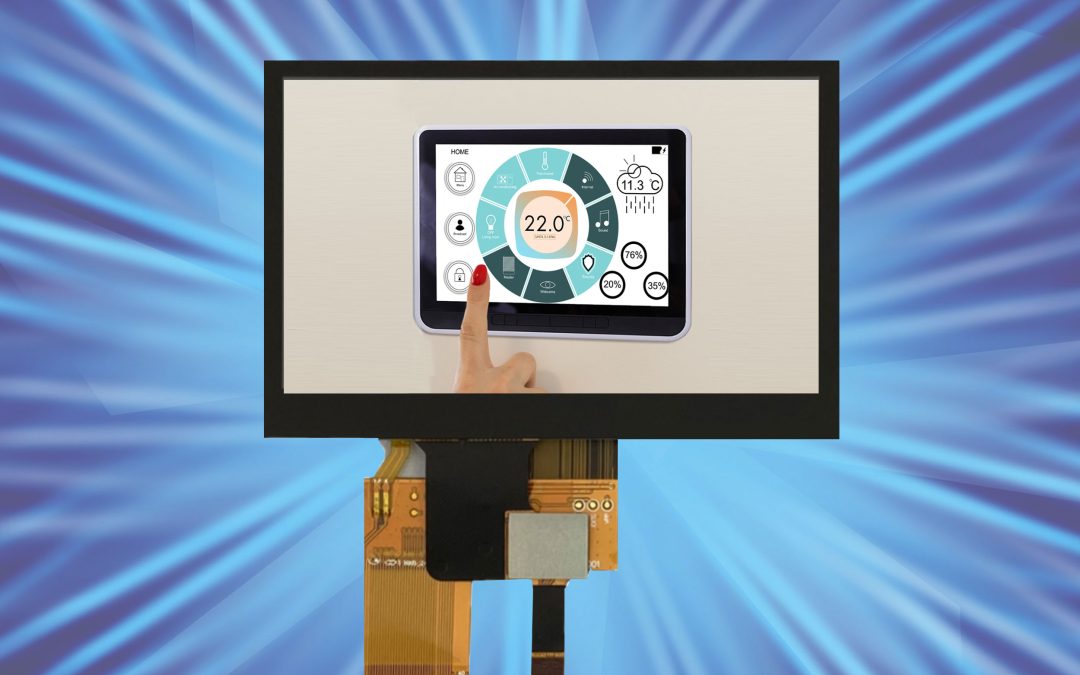

Inelco Hunter is pleased to announce the introduction of two new versions of a range of 4.3” TFT displays. The new model options include a cover lens and OCA bonding. The combination of OCA bonding with the new 1mm cover lens provides very high impact resistance – the impact rating is IK04 and the surface Hardness is 7H.
The JXT480272T017-ZBC06 features IPS, 20K MTBF, 500 nits. IC FT5446U and 1mm cover lens. The JXT480272T017-ZBR includes all of the aforementioned features and also comes with OCA bonding.
The 4.3” JXT480272T017 family of TFT displays features a resolution of 480(RGB) × 272 dots with a full viewing angle, transmissive normally black screen and 500 cd/m² brightness. It has a 24-bit RGB interface and an operating temperature range of -20°C to +70°C. The rated lifetime is 20,000 hours (MTBF) at standard conditions.
The display is powered by an ST7282A driver IC, offering robust performance, ensuring the module is well-suited to demanding environments. Suitable applications include medical devices, industrial control, home security, smart home control, measuring instruments and home appliances.
Inelco Hunter’s in-depth engineering support ensures rapid implementation, speeding up the customer’s time-to-market. This added-value support is at the core of Inelco Hunter’s philosophy, and has been for over 30 years, setting them apart from the “stock and ship” distributors.
